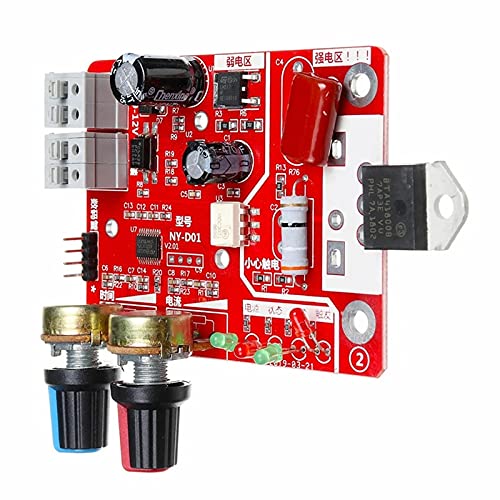

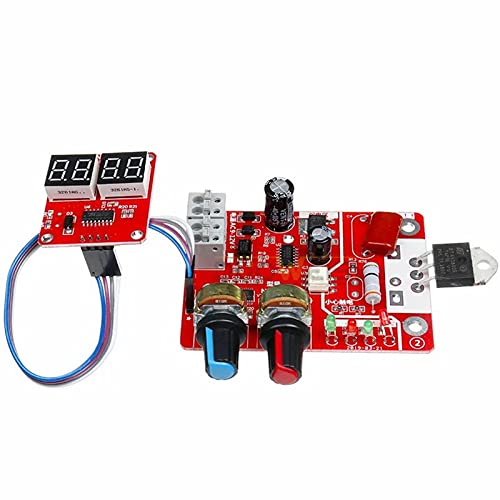

Lysee 3D Printer Parts & Accessories - NY-D02 100A/40A Double Pulse Encoder Spot Soldering Station Time Current Controller Control Board Adjustable Digital Display - (Color: 110V-9V Transformer)

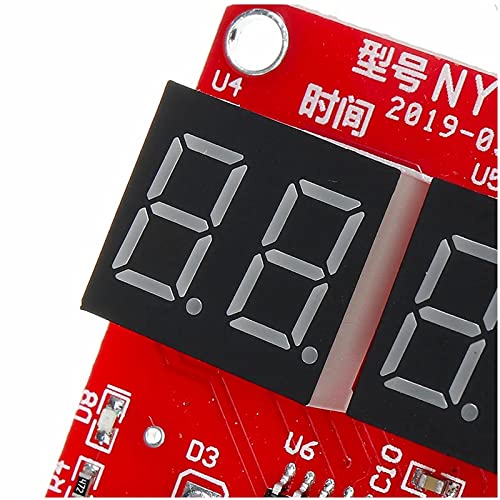

The main features of the controller:1. Welding pulse for a single and double pulse can be switched to use, anyone welding time is set to 0, can become a single pulse welding2. With network voltage compensation, according to the changes in electricity, automatically adjust the output to ensure that the same parameters in the welding with the same heat to maintain the same, the solder joint3. Parameter adjustment for the encoder input mode, more accurate and convenient4. With the welding count function, counting range 0-999, so you do the welding "heart", and can be saved.5. Time input 0-100 cycles, unit cycle (1 cycle is 20ms) current input (300-999). The current adjustment step is 0.1% and the regulation is more subdivided. If there are other ranges required, you can customize it.6. 3 blue 0.56 inch digital tube, the size of the browser than the knob control version of the large, our knob knob digital tube is 0.36 inches.7. Onboard power, pedal, trigger, run, time, current, interval, time, current indicator, so that each state has a clear indication8. The whole board using STM8 industrial microcontroller to do the main control core9. Strong and weak through the optocoupler isolation, operation more secure.10. Power cord and foot switch line with screw-free terminal, more convenient and reliable11. Design a reliable zero-crossing detection circuit to ensure that the SCR phase shift accurate12. The controller is compatible with 100A-40A thyristorWiring instructions:3.1. Operation Indicator Indicator Description3.2. Display status Descriptions:The controller has three kinds of operating status, welding preparation, parameter query, parameter changeWelding preparation: running light is always bright, time, current, interval, time, current indicator offParameter query: running indicator light off, time, current, interval, time, current corresponding to the amount o

• Color: 110V-9V transformer
• The controller has three kinds of operating status, welding preparation, parameter query, parameter change
• Welding preparation: running light is always bright, time, current, interval, time, current indicator off
• Parameter query: running indicator light off, time, current, interval, time, current corresponding to the amount o
• Origin: CN(Origin)
